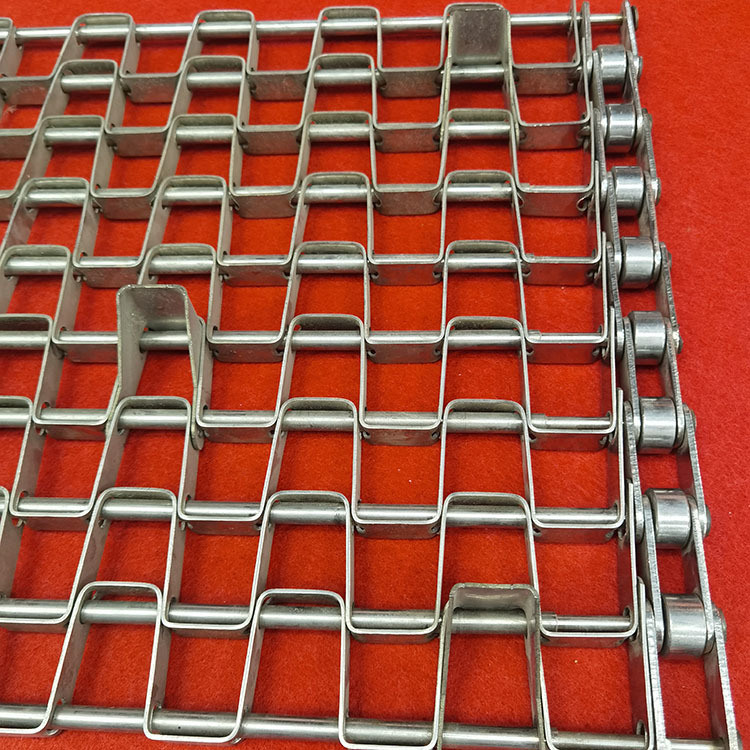

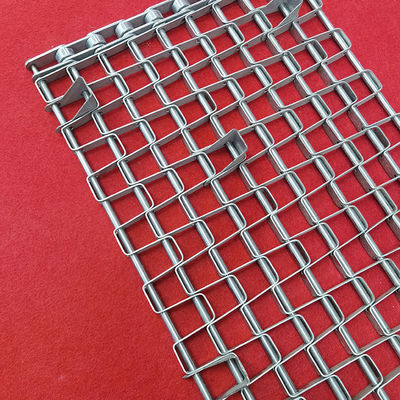

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle

Tên thương hiệu: PFM
Số mẫu: PFM-CB356
MOQ: 1 mét
giá bán: Có thể đàm phán
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây ,, PayPal, Đảm bảo thương mại
Khả năng cung cấp: 300 mét mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Hà Lan, Trung Quốc
Chứng nhận:
SGS
Vật liệu:
Thép không gỉ, Thép carbon
Đường dây phẳng:
25,4 mm
Thanh sân:
25,4 mm
Đường kính thanh:
5,0 mm
Kích thước dây phẳng:
1.2mm*14.1mm
Vật mẫu:
Có sẵn
chi tiết đóng gói:
Túi nhựa bên trong và vỏ gỗ dán bên ngoài hoặc theo nhu cầu của bạn.
Làm nổi bật:

stainless steel 316 conveyor belt

,

honeycomb mesh conveyor belt

,

heavy duty wire mesh belt

Mô tả sản phẩm
Heavy Duty Stainless Steel 316 Honeycomb Mesh Conveyor Belt with Baffle
Description
Flat wire conveyor belt is also called honeycomb conveyor belt or flat plate conveyor belt. The flat plates are arranged in the form of lattice and joined with straight rods. Customers can request chains, side plates, or both attached to the belt's sides. The side plates prevent goods from falling, while chains drive the belt.
Specification
Material stainless steel, carbon steel
Width customized
Length customized
Flat wire pitch 12.7, 14, 15, 16, 18, 24, 25.4 mm
Rod pitch 13.7, 19.05, 25.4, 27 mm
Rod diameter 3.0, 4.0, 5.0 mm
Flat wire size 1.2x9.5, 1.2x14.1, 1.5x12.7, 1.5x14.1 mm
Features
  • Positive sprocket drive ensures stable running
  • Larger open area provides high air permeability
  • Easy to wash and maintain
  • Smooth surface carries unstable products securely
  • Suitable for curved conveyor applications (CFW)
Applications
  1. Conveyor machines
  2. Frying facilities
  3. Annealing furnaces
  4. Refrigeration facilities
  5. Cleaning machines
  6. Drying ovens
  7. Food transport
  8. Baking
  9. Cooling and freezing
  10. Steaming and drying
