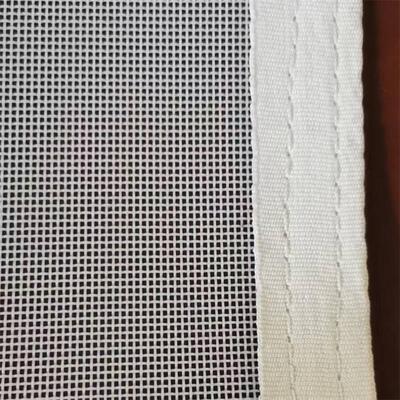

Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills
Polyester plain weave belt is used as a carrier belt for drying within the printing and textile industry and also used as
dewatering belts for fruit and vegetables in the food industry. These materials are also found in separation and filtration
applications like water treatment plants and flour mills.
We are a professional manufacturer of polyester mesh belts, producing a wide range of specialized polyester mesh belts, including sludge dewatering mesh belts, paper forming mesh belts, paper drying mesh belts, tea withering mesh belts, belt filter press mesh belts, vacuum conveyor mesh belts, power plant desulfurization filter cloths, vacuum drying mesh belts, composite machine mesh belts, non-woven fabric mesh curtains, food drying conveyor mesh belts, and more. These products are widely used in MDF production, power plant desulfurization, tailings dry discharge, sewage treatment, juice pressing, and in industries such as papermaking, food, pharmaceuticals, and tea.
Description:

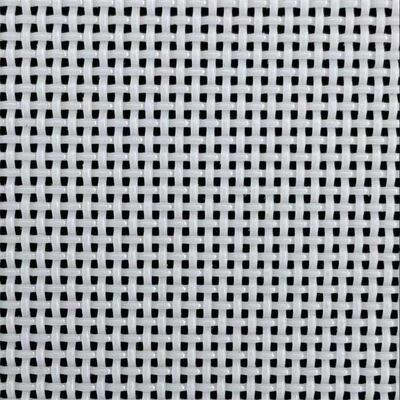

The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn, and weaving in 1:1 plain weave to get uniform and defined mesh opening, which makes the polyester mesh belts in high separation efficiency and optimum filtration effects. Furthermore, our linear screen filter belts are all being thermal setting to get high lateral stability and optimum running properties. Our Screen’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application respectively, blue and white color both available.
Advantage:
The nature of polyester belting is such that it offers a very durable long lasting media for extended life.
Strong polyester fibres provide excellent stability.Material Properties
1) Excellent chemical, thermal and high permeability for ease of cleaning.
2) Food approval: USFDA approval.
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions (polyester can suffer from hydrolysis in hot,humid conditions, typically in the presence of steam)
Polyester Wire Mesh Belt Plain Square Hole Open Dryer Mesh Conveyor Belt for Paper Mills Specification:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
