Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Tên thương hiệu: Comesh
Số mẫu: CAR-0025
MOQ: 50m
giá bán: Có thể đàm phán
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây,
Khả năng cung cấp: 800 cuộn mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
SGS
Tên:
Dây thép không gỉ dệt ngược kiểu Hà Lan Dây đai lưới lọc kim loại tự động có khả năng chống gỉ cao c
Vật liệu:
Thép không gỉ 201,304,316L
Chiều rộng:
10cm,12cm,12.7cm,15cm,20cm
Lưới:
72/15,152/30,152/24,260/40
Đặc trưng:
Chất lượng cao, Độ bền, Độ chắc chắn
Chiều dài:
10 mét, 15 mét, 20 mét
Ứng dụng:
máy kéo dây nhựa, máy đúc màng và máy phủ màng
kiểu:
màn lưới, đĩa lọc lưới
Cách sử dụng:
Lọc nóng chảy trong ngành nhựa
chi tiết đóng gói:
Giấy kraft bên trong, vỏ gỗ dán bên ngoài
Làm nổi bật:

Reverse Dutch Weave stainless steel wire mesh

,

Auto metal filter screen belt

,

Stainless steel mesh for plastic extruder

Mô tả sản phẩm

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.





Description:



Name 201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width 10cm,12cm,12.7cm,15cm,20cm
Mesh 260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style Reverse Dutch Weave
Keywords Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt





Application:



1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.




Advantage:

  • Continuous (automatic) belt filter has the resistance to acid, alkali, corrosion and high temperature.
  • More effective in extruder screening and better filtration performance.
  • Wide ranges of mesh sizes for different filtration requirements and grades.
  • Suitable for various automatic screen changers.
  • Uninterrupted replacement for effective production.





Mesh
Wire Diameter (mm)
Thickness (mm)
Width (cm)
45x15
0.45x0.6
1.75
8-85
72x15
0.45x0.55
1.7
8-85
120x16
0.35x0.45
1.36
8-85
132x17
0.3x0.45
1.3
8-85

152x24
0.3x0.40
1.2
8-85

160x18
0.28x0.45
1.27
8-85

200x40
0.15x0.27
0.7
8-130

260x40
0.15 x0.27
0.65
8-130

300x40
0.15 x0.27
0.65
8-130

360x40
0.13 x0.27
0.6
8-130

Special specification we can produce according to customer's requirements

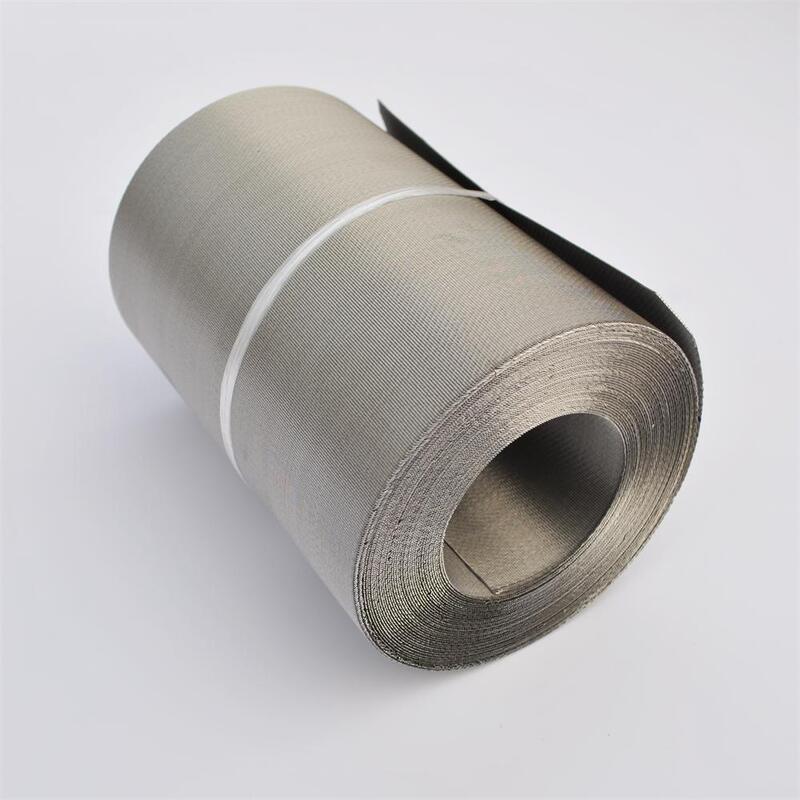

Products show:
